Morikusuta-PV-700-200高压容器
Morikusuta-PV-700-200高压容器
Device under continuous improvement. Images for reference only.

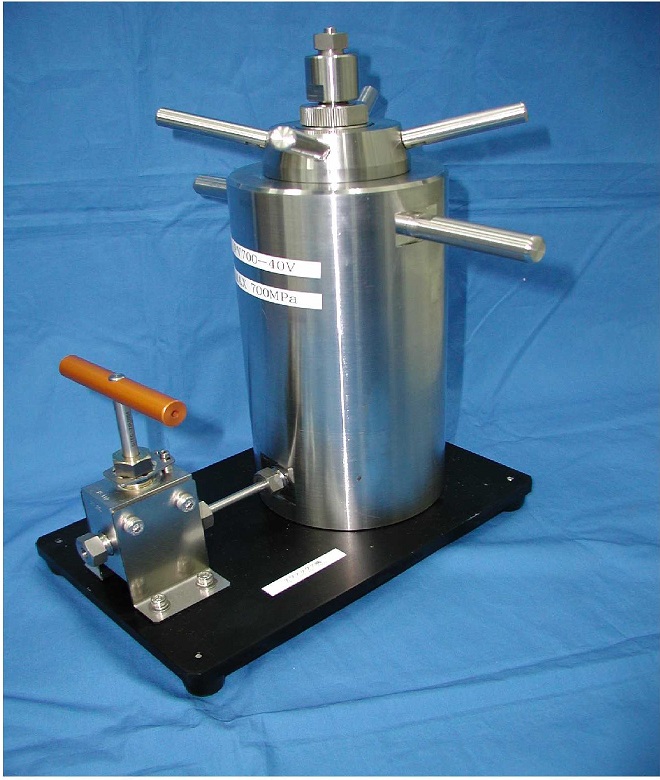

Morikusuta-PV-700-200 High-Pressure Vessel
A high-pressure vessel capable of operating at up to 700 MPa.
Capacity can be customized to meet your requirements.
Equipped with a monitoring pressure gauge.
Features a valve to separate the water pump from the vessel during prolonged pressurization experiments.
Supports installation of an internal temperature measurement thermocouple (optional).
Supports installation of a constant-temperature water jacket for temperature regulation (optional).
Specifications
| Item | Specification |
|---|---|
| Model | Morikusuta-PV-700-200 |
| Maximum Pressure | 500 MPa (standard), 700 MPa (max) |
| Temperature Range | -20°C to 150°C |
| Material | SUS630 H900 |
| Dimensions | φ150 × 400 mm |
| Chamber Size | φ45 × 125 mm |
| Capacity | 200 ml |
| Weight | 30 kg |
| Optional | K-Type Thermocouple (Internal) |
Specifications are subject to change without prior notice for product improvement.
Morikusuta-PV-700-200高压容器
可在700mpa下使用的高压容器。
容量会满足您的要求。
配备了监测用压力计。
配备了长时间加压实验时分离水泵和容器的阀门。
可以安装内部温度测量用热电偶(可选)。
可以安装温度调节用恒温水夹克(可选)。
规格
| 型式 | Morikusuta-PV-700-200 |
| 最高使用压力 | 常用500MPa，最大700MPa |
| 使用温度范围 | -20℃～150℃ |
| 材质 | SUS630H900 |
| 外形尺寸 | φ 150x 400ｍｍ |
| 试料室尺寸 | φ45×125ｍｍ |
| 内容量 | 200ml |
| 重量 | 30kg |
| 可选项 | 内部测定用K-Type热电偶 |
